Sheikh Jaber Al Ahmed Al Sabah Causeway Project – Doha Link, Kuwait
In 2015 DLT were awarded the contract by Qinhuangdao Tianye Tolian Heavy Industry of China for detailed design of a bridge deck erection gantry, a transporter and a pair of straddle carriers for the Sheikh Jaber Al Ahmed Al Sabah Causeway Project – Doha Link, Kuwait. The Doha Link is a 12.43 km sea crossing with twin parallel decks and is constructed from precast concrete deck beams supported on cast in-situ piers. The straddle carriers, transporter and gantry were all designed to handle precast concrete bridge deck beams weighing up to 1700 tonnes and with a span range of 30m to 60 m. The equipment is due for delivery to site towards the end of 2015.

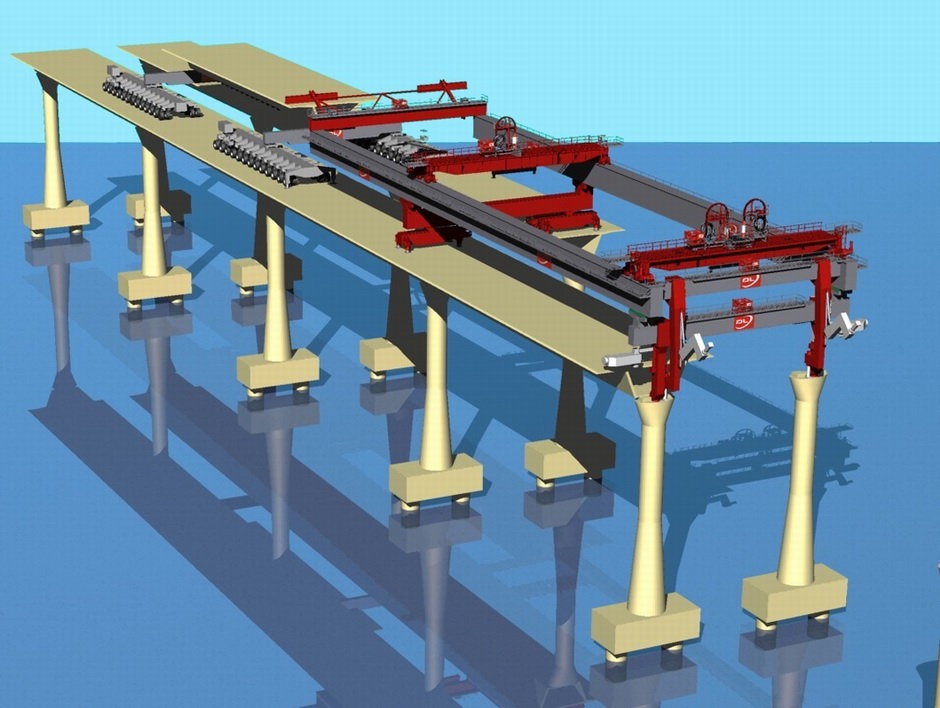

The 1700 tonne capacity bridge deck erection gantry and transporter.....
Doha link bridge deck erection gantry

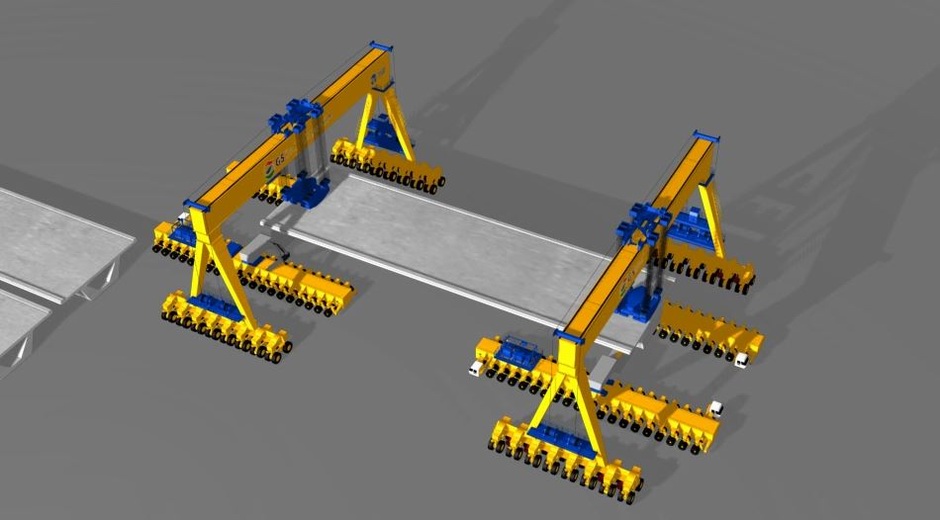

2 x 850 tonne capacity straddle carriers and the transporter in the casting yard.....
Doha link straddle carriers
