DL-TS3600 jacking tower system for the erection of petrochemical vessels

The DL-TS3600 is a new jacking tower system designed and supplied by Dorman Long Technology to Sinopec Tenth Construction Company in China. Delivery will be in 2014. The tower system has a gross lifting capacity of 3600 tonnes in two tower configuration and 7200 tonnes in four tower configuration. The main features of this tower system are as follows :
  • 7200 metric tonnes gross lifting capacity on four towers
  • 2-tower and 4-tower, guyed and free standing configuration options
  • DL-CP600 pinned climbing jacks used for lifting. 600 tonnes lifting capacity per jack. Each tower can be fitted with two or three of these jacks.
  • All components designed for transport in standard shipping containers
  • 3600 tonne capacity lifting beam spans between a pair of towers and is lifted with the load, removing the need to erect and dismantle this beam at height and avoiding a large wind sail at the top of the tower in the out-of-service storm wind condition.
  • Self-erect and dismantle option, with the 11.85m long fully assembled tower sections being inserted and removed at the bottom of the towers
  • DL-P40 central computer control of all jacking systems for accurate monitoring and synchronisation. This control system has many automatic functions included, including overload protection and full data logging.
  • Vessel can be moved longitudinally and transversely after lifting
  • Vessel can be rotated after lifting using an optional 360 degree swivel.

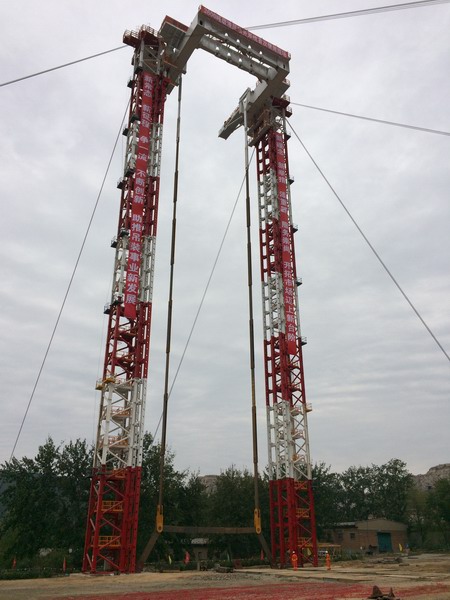

DL-TS3600 in 2 tower U frame configuration during 125% overload testing.....

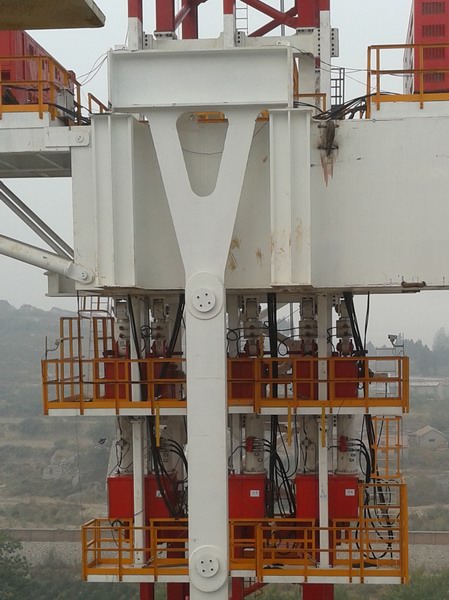

3 No DL-CP600 pinned climbgin jacks........
DL-TS3600 jackign tower system
DL-TS3600 jacking tower system

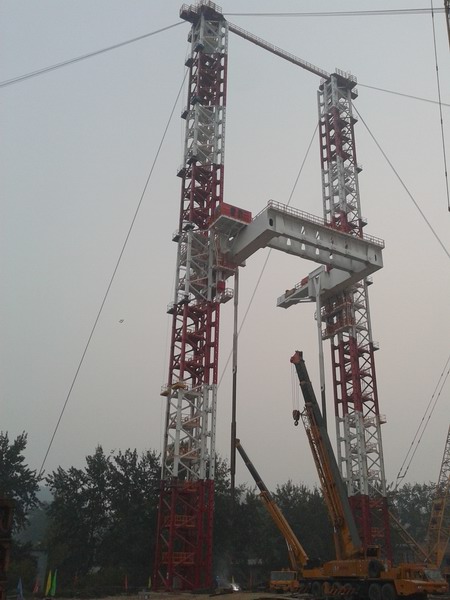

DL-TS3600 in 2 tower U frame configuration during 125% overload testing.....

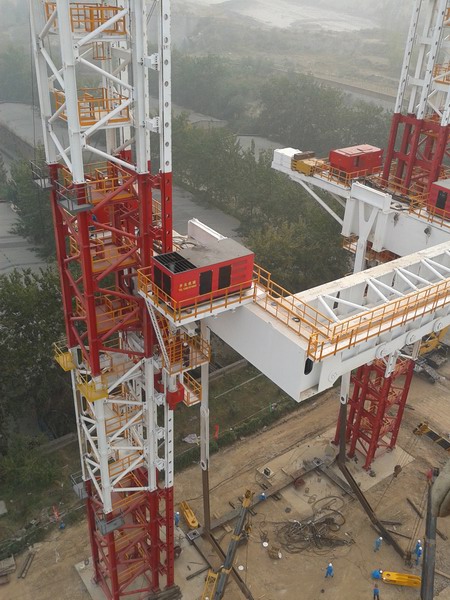

DL-TS3600 in 2 tower U frame configuration during 125% overload testing....
DL-TS3600 jackign tower system
DL-TS3600 jacking tower system

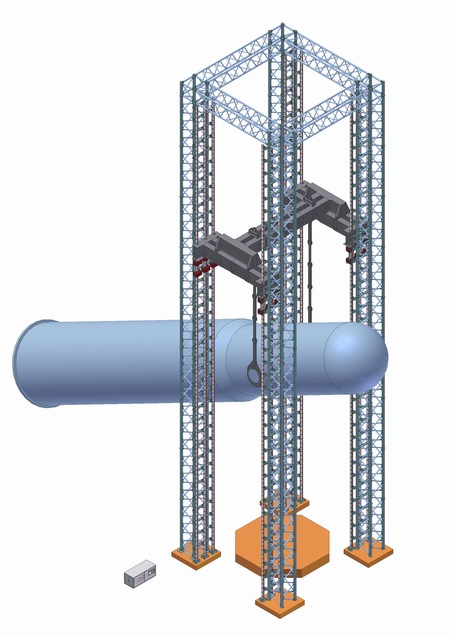

DL-TS3600 in 4 tower unguyed configuration......

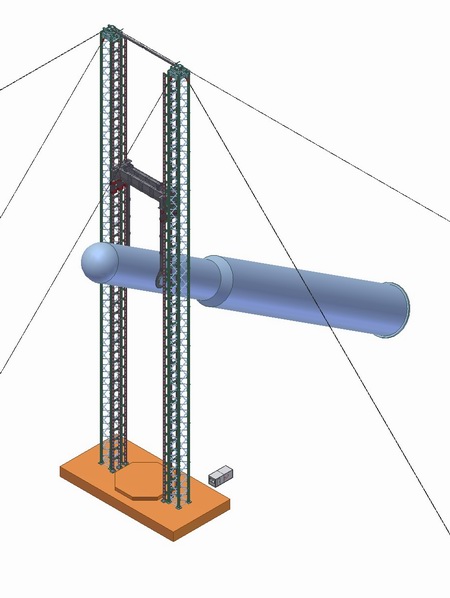

DL-TS3600 in 2 tower guyed configuration.........
DL-TS3600 jackign tower system
DL-TS3600 jacking tower system

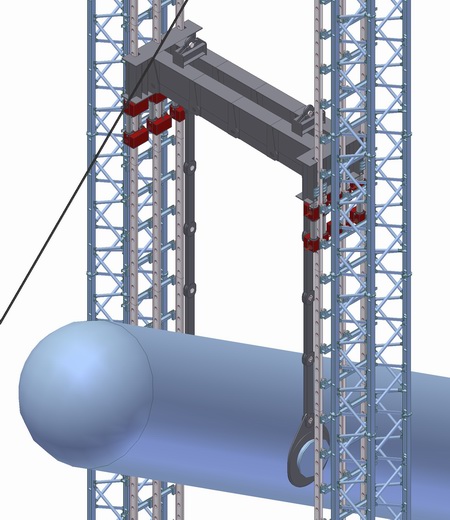

DL-TS3600 cross beam detail......

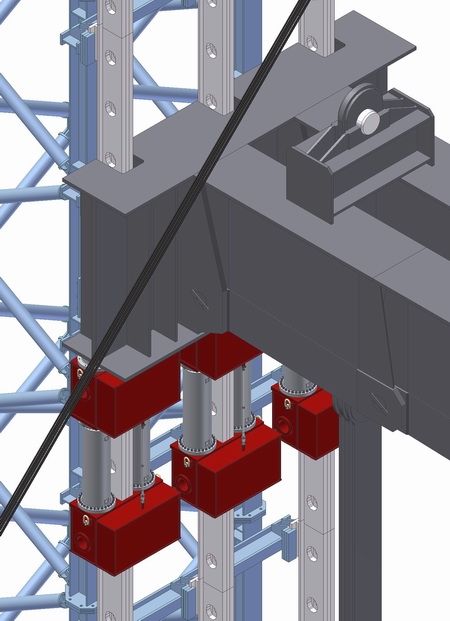

DL-TS3600 detail of DL-CP600 pinned climbing jacks.........
